Applicable Industries: | Machinery Repair Shops, Other, Car Repair Shops | Voltage: | 110V/60HZ ; 230V-50HZ |
---|---|---|---|
Max Pressure: | 18bar | G.W.: | 80Kg |
Warranty Of Core Components: | 2 Years | Compressor: | 1/3HP,11CC |
Core Components: | PLC, Engine, Pump | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
Tank: | 14.3L | Printer: | Optional |
High Light: | R134a air conditioning recovery system,75Micron air conditioning recovery system,r134a refrigerant recovery |

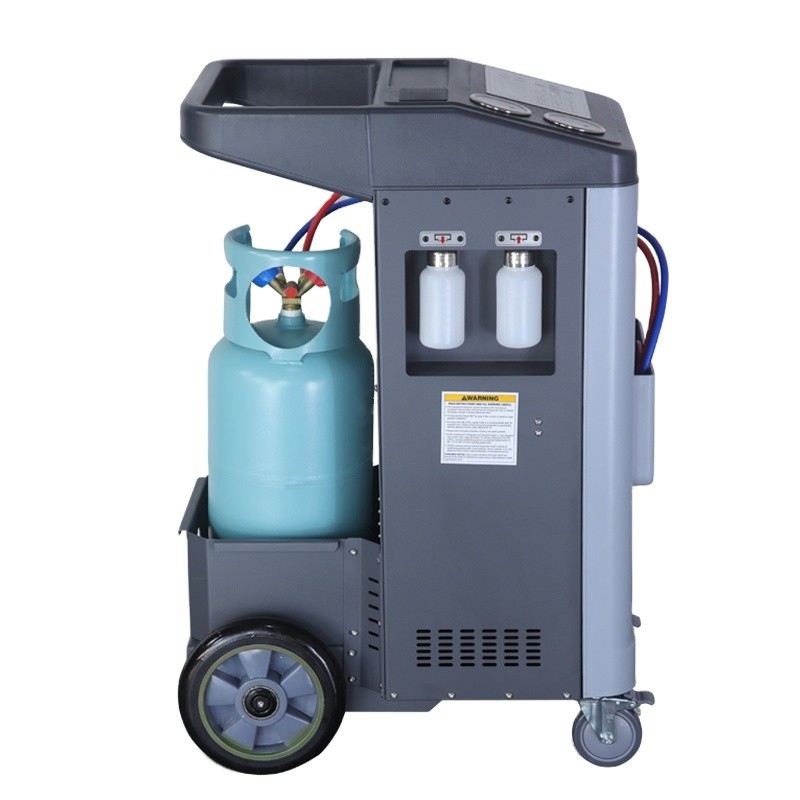

Ac Recovery Recycling Recharging Machine AC Work Station
Features:
1. Fully automatic
2. WYSIWYG UI
3. Precise
Since the official release of AC1000, ZELL has gone through more than ten years of meticulous research and development, and AC1000 has become one of the best products in the market with the best price/performance ratio, space structure, and overall size. Save a lot of equipment costs and transportation costs for customers.
1 | Gas | R134a OR R12 |
2 | Temperature | 5-50℃ |
3 | Max Pressure | 18bar |
4 | Power | 220V/50Hz |
5 | G.W. | 80Kg |
6 | Package | 50*70*110cm |
7 | Screen | 192*64 dot |
8 | HP/LP gauge | 80mm |
9 | Tank gauge | 40mm |
10 | Hose | 2.5M/SAE-J2196 |
11 | Compressor | 1/3HP,11CC |
12 | Vacuum Pump | 60L/Min1.8CFM |
13 | Ultimate Vacuum | 75Micron,10Pa |
14 | Fan&condenser | YES |
15 | Filter Drier | 80Kg |
16 | Tank | 14.3L |
17 | Oil Bottle | 250mL |
18 | Loadcell | 1g/30Kg |
19 | Printer | Optional |
20 | Heating Belt | Optional |
21 | SD Database | YES |
